Kesla · Authorized Importer

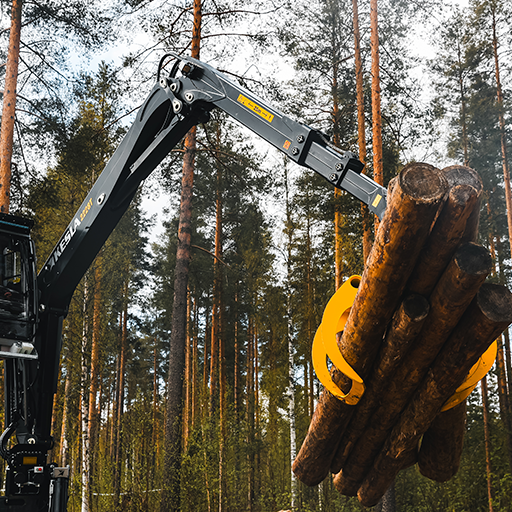

Timber Crane
Kesla 2228 2228-84
Select model
Outreach
8,400 mm
Lifting Torque (net)
285 kNm
Length of Telescope
1,700 mm
Slewing Torque
43 kNm
Slewing Angle
416°
Working Pressure
26 MPa
Weight
3,084 kg
Full Specifications
| 2228-84● selected | 2228-88 | 2228-98 | 2228-102 | |
|---|---|---|---|---|
| Outreach | 8,400 mm | 8,800 mm | 9,820 mm | 10,220 mm |
| Lifting Torque (net) | 285 kNm | 273 kNm | 268 kNm | 249 kNm |
| Length of Telescope | 1,700 mm | 1,700 mm | 2 x 1,530 mm | 2 x 1,530 mm |
| Slewing Torque | 43 kNm | 43 kNm | 43 kNm | 43 kNm |
| Slewing Angle | 416° | 416° | 416° | 416° |
| Working Pressure | 26 MPa | 26 MPa | 26 MPa | 26 MPa |
| Weight | 3,084 kg | 3,122 kg | 3,351 kg | 3,386 kg |
All Models
Technical Diagram
Click to enlarge
