Kesla · Authorized Importer

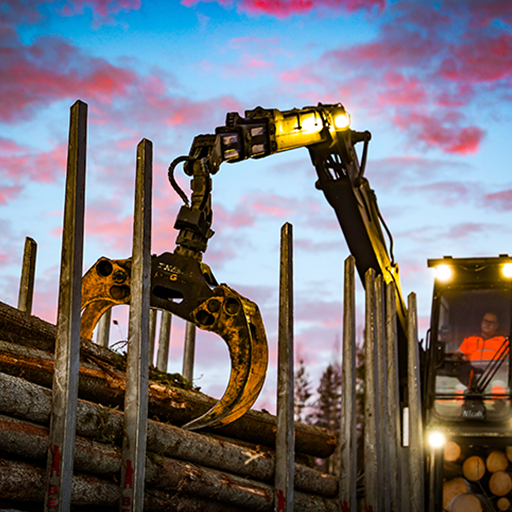

Timber Crane
Kesla 2212S 2212S-81
Select model
Outreach
8,100 mm
Lifting Torque (net)
128 kNm
Length of Telescope
1,600 mm
Slewing Torque
23 kNm
Slewing Angle
418°
Working Pressure
26 MPa
Weight
2,147 kg
Full Specifications
| 2212S-81● selected | 2212S-86 | 2212ST-97 | 2212ST-102 | |
|---|---|---|---|---|
| Outreach | 8,100 mm | 8,600 mm | 9,700 mm | 10,200 mm |
| Lifting Torque (net) | 128 kNm | 123 kNm | 123 kNm | 119 kNm |
| Length of Telescope | 1,600 mm | 1,600 mm | 2 x 1,600 mm | 2 x 1,600 mm |
| Slewing Torque | 23 kNm | 23 kNm | 23 kNm | 23 kNm |
| Slewing Angle | 418° | 418° | 418° | 418° |
| Working Pressure | 26 MPa | 26 MPa | 26 MPa | 26 MPa |
| Weight | 2,147 kg | 2,176 kg | 2,245 kg | 2,274 kg |
All Models
Technical Diagram
Click to enlarge
