Harvester Head

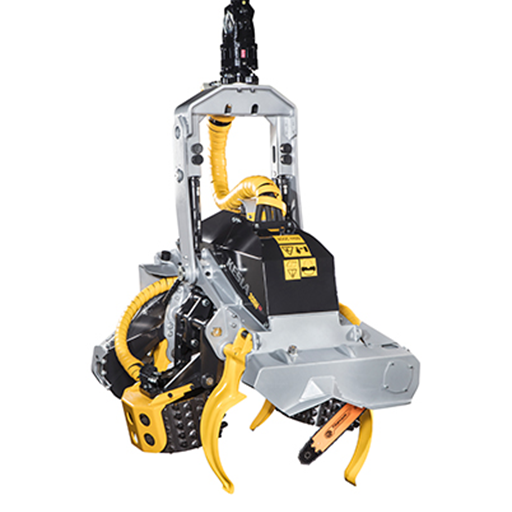

Kesla 30RH-III 2WD
Select model
Max Cutting Diameter
780 mm
Weight (without rotator)
1,690 kg
Width (head open)
1,765 mm
Width (head closed)
1,260 mm
Length
1,695 mm
Height (without rotator)
1,910 mm
Feed Force
20–32 kN
Feeding
2 rollers
Knives
4 moving + 1 fixed
Operating Pressure
280 bar
Flow Required
175–260 l/min
Power Required
130 kW
Full Specifications
| 2WD● selected | 3WD | |
|---|---|---|
| Max Cutting Diameter | 780 mm | 780 mm |
| Weight (without rotator) | 1,690 kg | 1,690 kg |
| Width (head open) | 1,765 mm | 1,765 mm |
| Width (head closed) | 1,260 mm | 1,260 mm |
| Length | 1,695 mm | 1,695 mm |
| Height (without rotator) | 1,910 mm | 1,910 mm |
| Feed Force | 20–32 kN | 32 kN |
| Feeding | 2 rollers | 3 rollers |
| Knives | 4 moving + 1 fixed | 4 moving + 1 fixed |
| Operating Pressure | 280 bar | 280 bar |
| Flow Required | 175–260 l/min | 220 l/min |
| Power Required | 130 kW | 130 kW |
All Models
Technical Diagram
Click to enlarge
