Kesla · Authorized Importer
Harvester Head

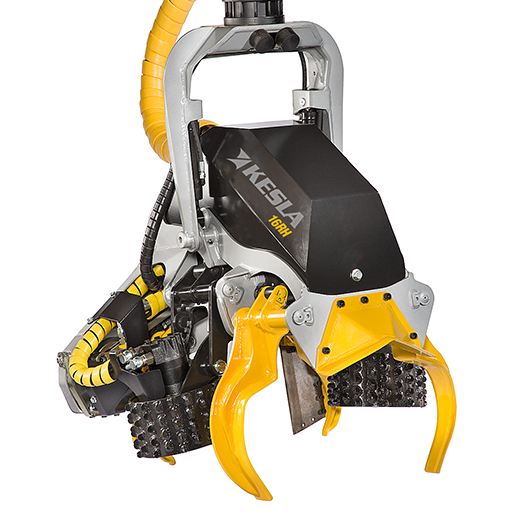

Kesla 16RH
Max Cutting Diameter
450 mm
Weight (without rotator)
445 kg
Width (head open)
1,040 mm
Width (head closed)
830 mm
Length
1,110 mm
Height (without rotator)
1,110 mm
Feed Force
16 kN
Feeding
2 rollers
Knives
4 mobile + 1 fixed
Operating Pressure
230–250 bar
Flow Required
150–170 l/min
Power Required
65–80 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 450 mm |
| Weight (without rotator) | 445 kg |
| Width (head open) | 1,040 mm |
| Width (head closed) | 830 mm |
| Length | 1,110 mm |
| Height (without rotator) | 1,110 mm |
| Feed Force | 16 kN |
| Feeding | 2 rollers |
| Knives | 4 mobile + 1 fixed |
| Operating Pressure | 230–250 bar |
| Flow Required | 150–170 l/min |
| Power Required | 65–80 kW |
Technical Diagram
Click to enlarge
