Harvester Head

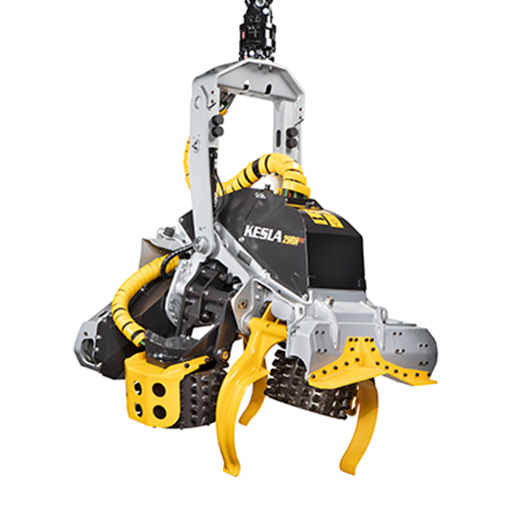

Kesla 29RH-III Standard
Select model
Max Cutting Diameter
780 mm
Weight (without rotator)
1,540 kg
Width (head open)
1,765 mm
Width (head closed)
1,260 mm
Length
1,580 mm
Height (without rotator)
1,910 mm
Feed Force
20–32 kN
Feeding
2 rollers
Knives
3 moving + 1 fixed
Operating Pressure
280 bar
Flow Required
175–260 l/min
Power Required
120–150 kW
Full Specifications
| Standard● selected | TS | |
|---|---|---|
| Max Cutting Diameter | 780 mm | 780 mm |
| Weight (without rotator) | 1,540 kg | 1,660 kg |
| Width (head open) | 1,765 mm | 1,765 mm |
| Width (head closed) | 1,260 mm | 1,345 mm |
| Length | 1,580 mm | 1,810 mm |
| Height (without rotator) | 1,910 mm | 1,910 mm |
| Feed Force | 20–32 kN | 20–32 kN |
| Feeding | 2 rollers | 2 rollers |
| Knives | 3 moving + 1 fixed | 3 moving + 1 fixed |
| Operating Pressure | 280 bar | 280 bar |
| Flow Required | 175–260 l/min | 175–260 l/min |
| Power Required | 120–150 kW | 120–150 kW |
All Models
Technical Diagram
Click to enlarge
