Kesla · Authorized Importer
Harvester Head

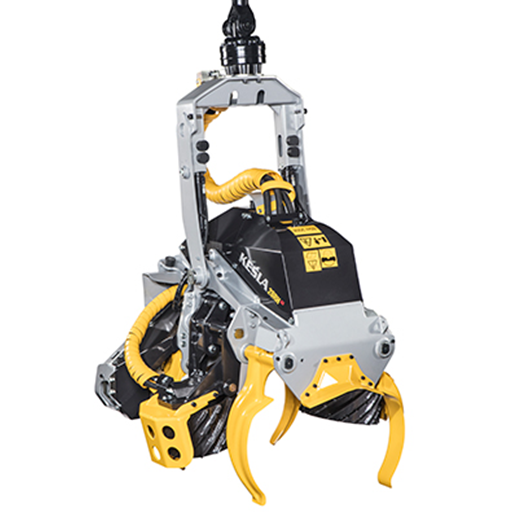

Kesla 28RH-III 2WD
Select model
Max Cutting Diameter
780 mm
Weight (without rotator)
1,380 kg
Width (head open)
1,670 mm
Width (head closed)
1,210 mm
Length
1,635 mm
Height (without rotator)
1,890 mm
Feed Force
23–36 kN
Feeding
2 rollers
Knives
4 moving + 1 fixed
Operating Pressure
280 bar
Flow Required
250 l/min
Power Required
120 kW
Full Specifications
| 2WD● selected | 3WD | |
|---|---|---|
| Max Cutting Diameter | 780 mm | 780 mm |
| Weight (without rotator) | 1,380 kg | 1,440 kg |
| Width (head open) | 1,670 mm | 1,670 mm |
| Width (head closed) | 1,210 mm | 1,210 mm |
| Length | 1,635 mm | 1,635 mm |
| Height (without rotator) | 1,890 mm | 1,890 mm |
| Feed Force | 23–36 kN | 30 kN |
| Feeding | 2 rollers | 3 rollers |
| Knives | 4 moving + 1 fixed | 4 moving + 1 fixed |
| Operating Pressure | 280 bar | 280 bar |
| Flow Required | 250 l/min | 220 l/min |
| Power Required | 120 kW | 120 kW |
All Models
Technical Diagram
Click to enlarge
