Harvester Head

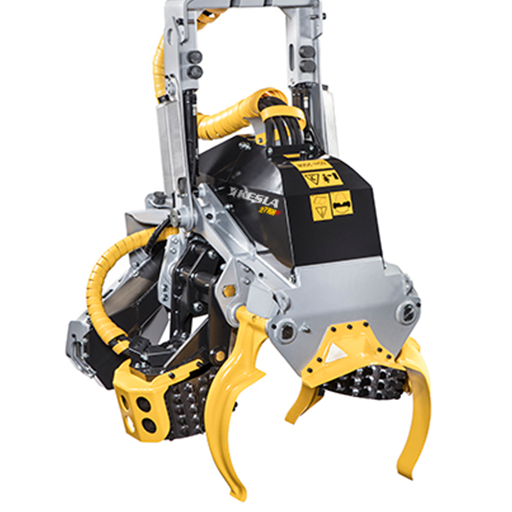

Kesla 27RH-III
Max Cutting Diameter
780 mm
Weight (without rotator)
1,290 kg
Width (head open)
1,670 mm
Width (head closed)
1,210 mm
Length
1,565 mm
Height (without rotator)
1,890 mm
Feed Force
23–36 kN
Feeding
2 rollers
Knives
3 moving + 1 fixed
Operating Pressure
280 bar
Flow Required
250 l/min
Power Required
120 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 780 mm |
| Weight (without rotator) | 1,290 kg |
| Width (head open) | 1,670 mm |
| Width (head closed) | 1,210 mm |
| Length | 1,565 mm |
| Height (without rotator) | 1,890 mm |
| Feed Force | 23–36 kN |
| Feeding | 2 rollers |
| Knives | 3 moving + 1 fixed |
| Operating Pressure | 280 bar |
| Flow Required | 250 l/min |
| Power Required | 120 kW |
Technical Diagram
Click to enlarge
