Kesla · Authorized Importer
Harvester Head

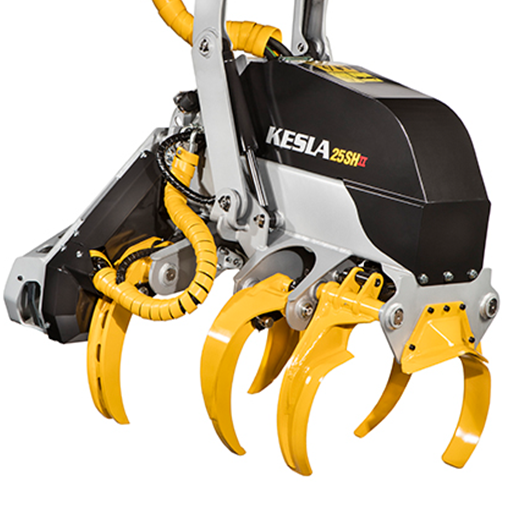

Kesla 25SH-II
Max Cutting Diameter
670 mm
Weight (without rotator)
920 kg
Width (head open)
1,030 mm
Width (head closed)
1,015 mm
Length
1,570–2,420 mm
Height (without rotator)
1,450 mm
Feed Force
65 kN
Feeding
Stroke feed
Knives
4 moving + 1 fixed
Operating Pressure
175–210 bar
Flow Required
120–180 l/min
Power Required
40–75 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 670 mm |
| Weight (without rotator) | 920 kg |
| Width (head open) | 1,030 mm |
| Width (head closed) | 1,015 mm |
| Length | 1,570–2,420 mm |
| Height (without rotator) | 1,450 mm |
| Feed Force | 65 kN |
| Feeding | Stroke feed |
| Knives | 4 moving + 1 fixed |
| Operating Pressure | 175–210 bar |
| Flow Required | 120–180 l/min |
| Power Required | 40–75 kW |
Technical Diagram
Click to enlarge
