Kesla · Authorized Importer
Harvester Head

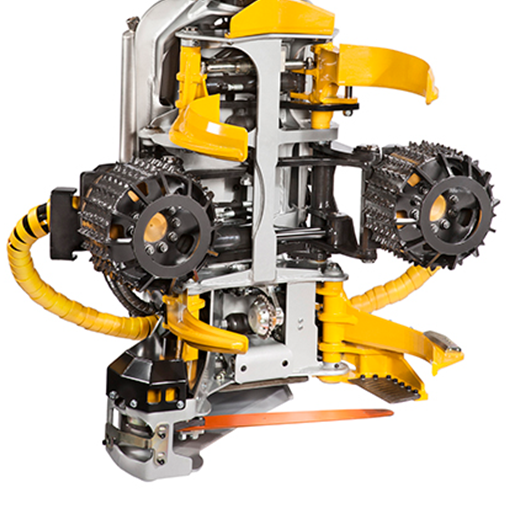

Kesla 25RH-II
Max Cutting Diameter
670 mm
Weight (without rotator)
860 kg
Width (head open)
1,350 mm
Width (head closed)
980 mm
Length
1,400 mm
Height (without rotator)
1,390 mm
Feed Force
24 kN
Feeding
2 rollers synch.
Knives
4 moving + 1 fixed
Operating Pressure
210–240 bar
Flow Required
200–250 l/min
Power Required
75–100 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 670 mm |
| Weight (without rotator) | 860 kg |
| Width (head open) | 1,350 mm |
| Width (head closed) | 980 mm |
| Length | 1,400 mm |
| Height (without rotator) | 1,390 mm |
| Feed Force | 24 kN |
| Feeding | 2 rollers synch. |
| Knives | 4 moving + 1 fixed |
| Operating Pressure | 210–240 bar |
| Flow Required | 200–250 l/min |
| Power Required | 75–100 kW |
Technical Diagram
Click to enlarge
