Kesla · Authorized Importer
Harvester Head

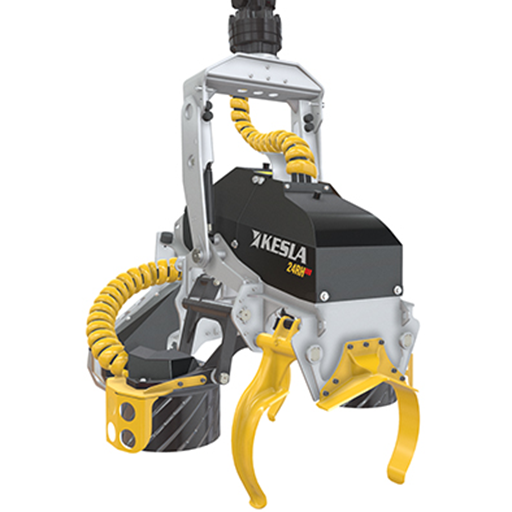

Kesla 24RH-III
Max Cutting Diameter
650 mm
Weight (without rotator)
960 kg
Width (head open)
1,540 mm
Width (head closed)
1,115 mm
Height (without rotator)
1,400 mm
Feed Force
16–23 kN
Feeding
2 rollers
Knives
1 + 3
Operating Pressure
280 bar
Flow Required
220–250 l/min
Power Required
75–100 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 650 mm |
| Weight (without rotator) | 960 kg |
| Width (head open) | 1,540 mm |
| Width (head closed) | 1,115 mm |
| Height (without rotator) | 1,400 mm |
| Feed Force | 16–23 kN |
| Feeding | 2 rollers |
| Knives | 1 + 3 |
| Operating Pressure | 280 bar |
| Flow Required | 220–250 l/min |
| Power Required | 75–100 kW |
Technical Diagram
Click to enlarge
