TKA · Authorized Importer
BX Line

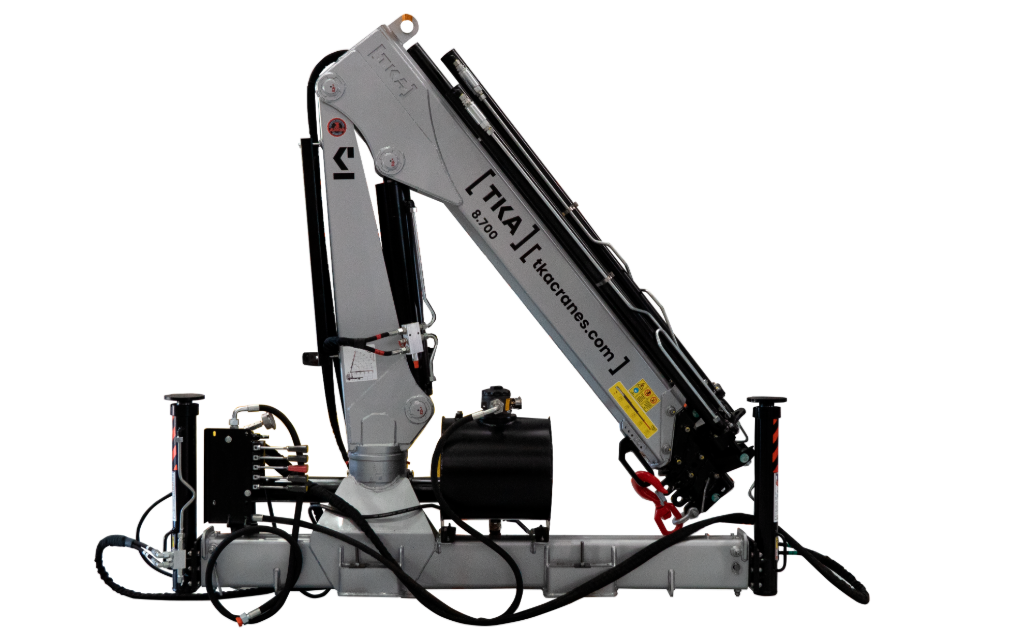

[TKA] 8.700 BX
Max Capacity
4,500 kg
Own Weight
970 kg
Hydraulic Extensions
3
Manual Extensions
1
Max Vertical
10.09m
Max Horizontal
8.2m
Full Specifications
| Standard● selected | |
|---|---|
| Max Capacity | 4,500 kg |
| Own Weight | 970 kg |
| Hydraulic Extensions | 3 |
| Manual Extensions | 1 |
| Max Vertical | 10.09m |
| Max Horizontal | 8.2m |

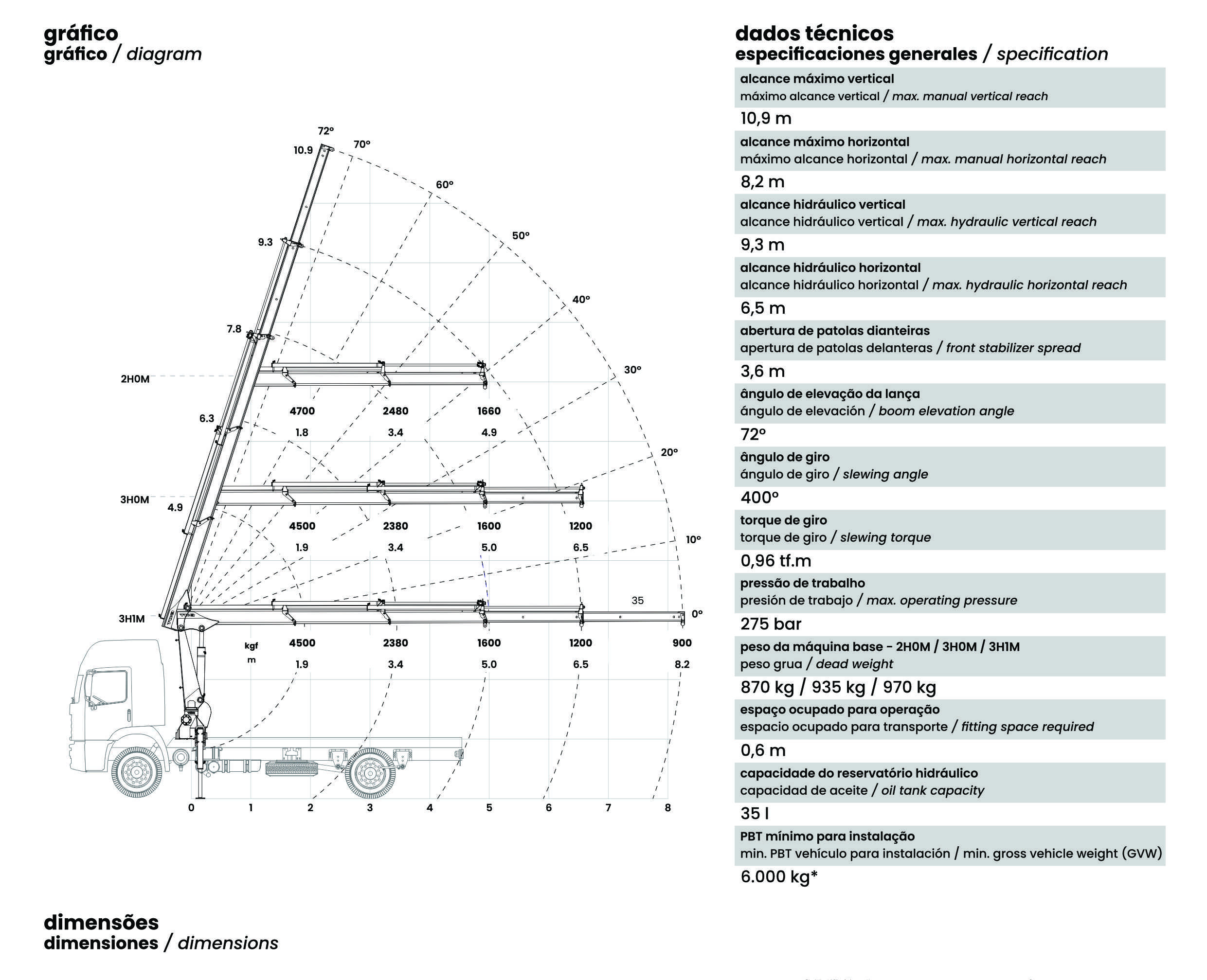

Technical Diagram
![[TKA] 8.700 BX Standard diagram](/products/diagrams/[TKA] 8.700 bx-diagram.png)
Click to enlarge
Specification Sheet
Download the full technical specification sheet for the [TKA] 8.700 BX .
