TKA · Authorized Importer
Brazilian Boom

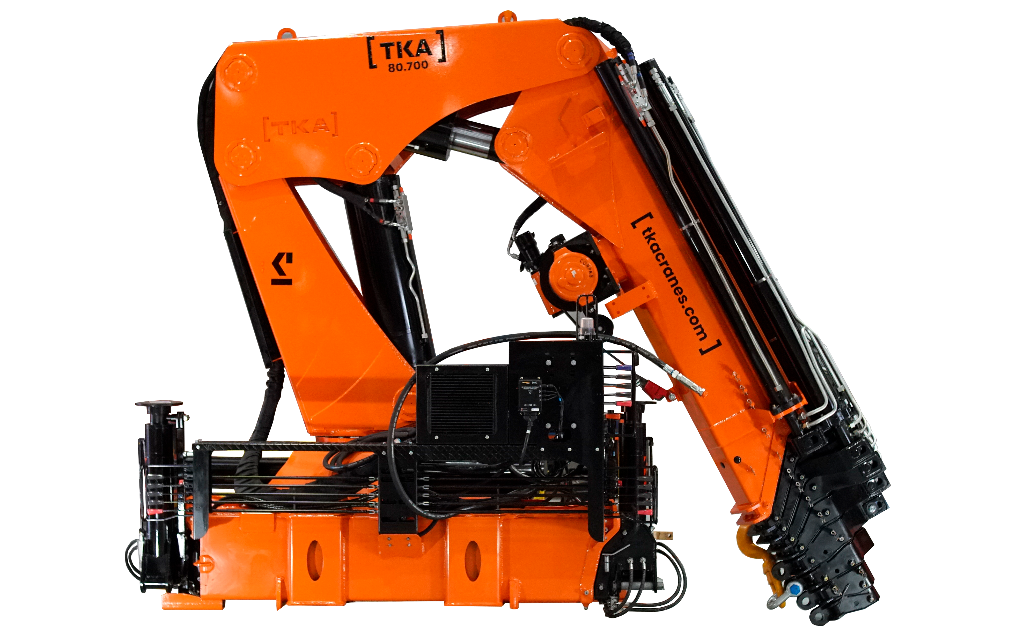

[TKA] 80.700 Standard
Select model
Max Capacity
17,100 kg
Own Weight
7,400 kg
Hydraulic Extensions
7
Manual Extensions
3
Max Vertical
28.3m
Max Horizontal
24.6m
Full Specifications
| Standard● selected | Fly Jib | |
|---|---|---|
| Max Capacity | 17,100 kg | 16,800 kg |
| Own Weight | 7,400 kg | 8,125 kg |
| Hydraulic Extensions | 7 | 7h + 4h (fly jib) |
| Manual Extensions | 3 | 1m (fly jib) |
| Max Vertical | 28.3m | 32.64m |
| Max Horizontal | 24.6m | 29.07m |
All Models

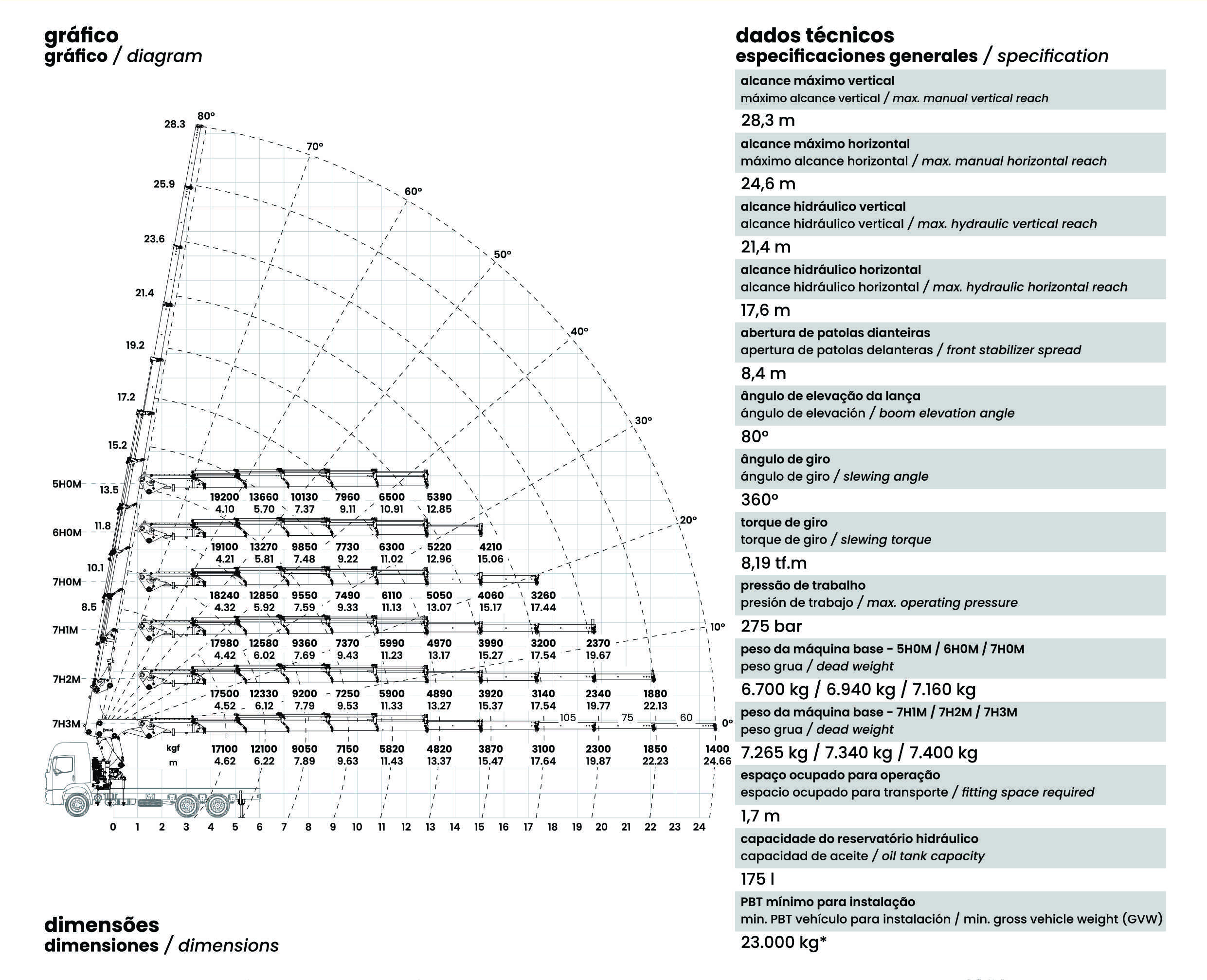

Technical Diagram
![[TKA] 80.700 Standard diagram](/products/diagrams/[TKA] 80.700-diagram.png)
Click to enlarge
Specification Sheet
Download the full technical specification sheet for the [TKA] 80.700 Standard.
