TKA · Authorized Importer
Brazilian Boom
[TKA] 72.900 Standard
Select model
Max Capacity
16,000 kg
Own Weight
5,950 kg
Hydraulic Extensions
7
Manual Extensions
3
Max Vertical
27.6m
Max Horizontal
24.1m
Full Specifications
| Standard● selected | Fly Jib | |
|---|---|---|
| Max Capacity | 16,000 kg | 15,000 kg |
| Own Weight | 5,950 kg | 6,670 kg |
| Hydraulic Extensions | 7 | 7h + 4h (fly jib) |
| Manual Extensions | 3 | 1m (fly jib) |
| Max Vertical | 27.6m | 32.7m |
| Max Horizontal | 24.1m | 28.9m |
All Models

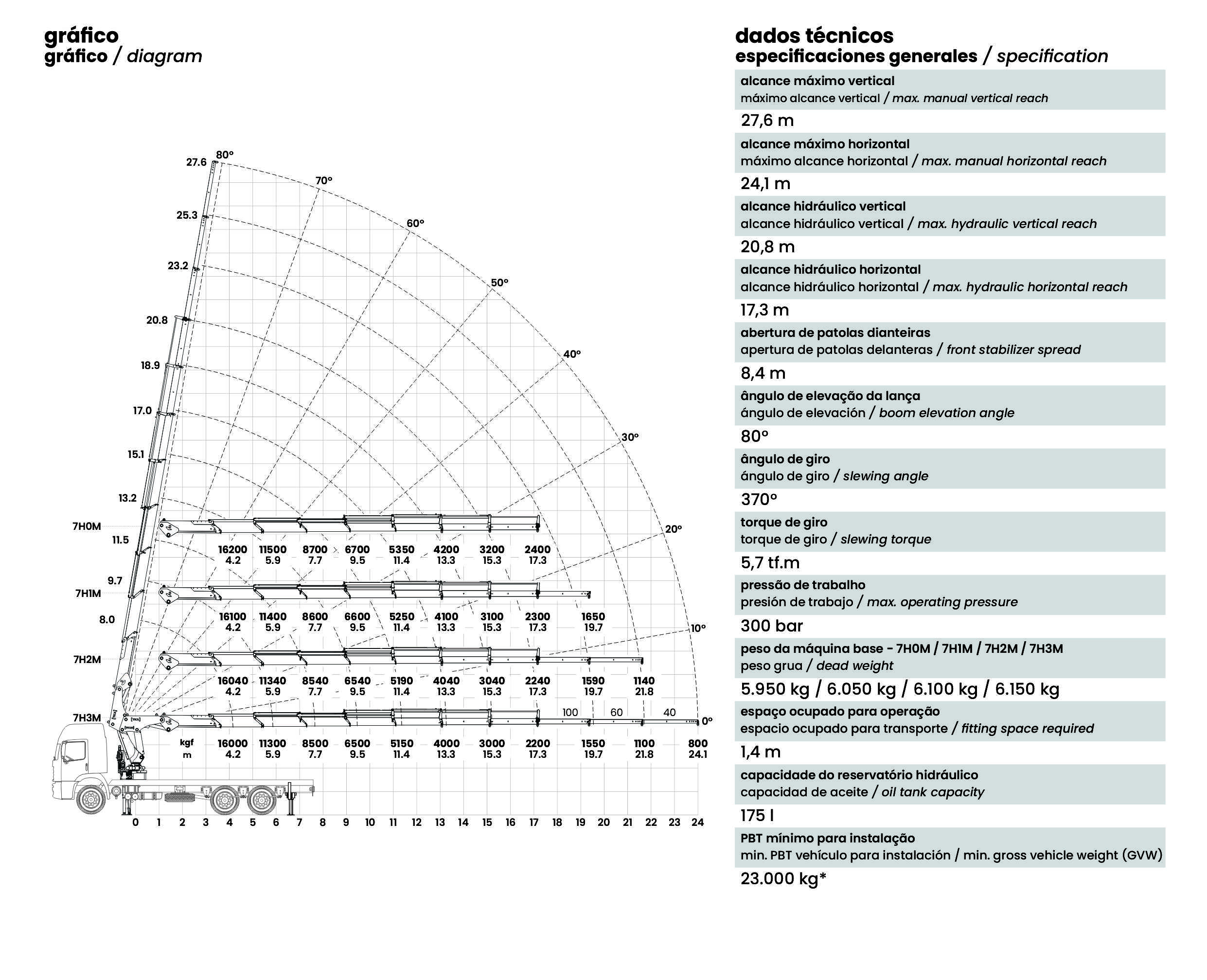

Technical Diagram
![[TKA] 72.900 Standard diagram](/products/diagrams/[TKA] 72.900-diagram.png)
Click to enlarge
Specification Sheet
Download the full technical specification sheet for the [TKA] 72.900 Standard.
