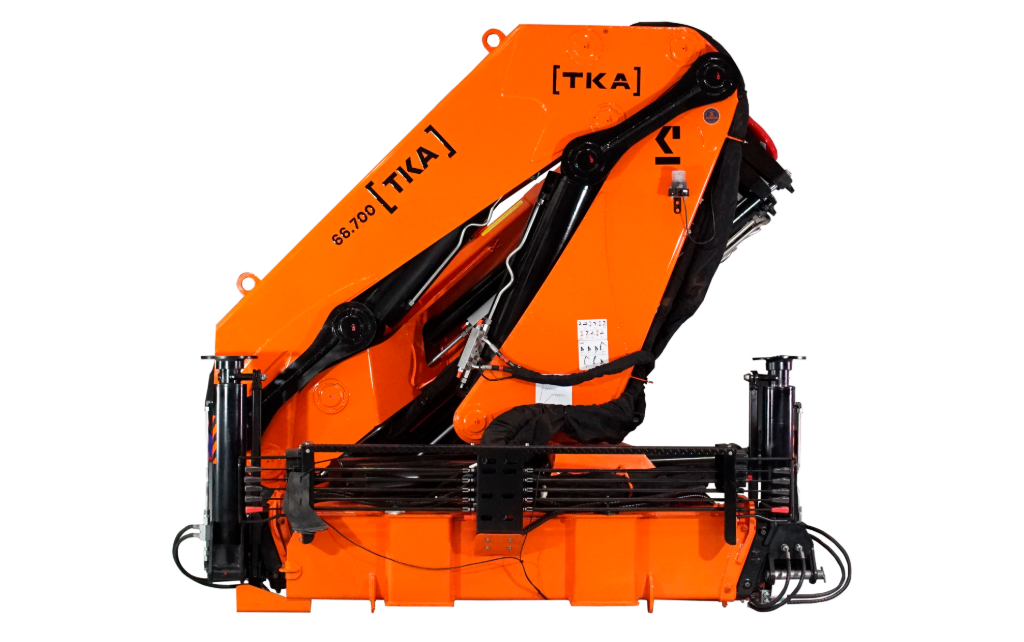

![[TKA] 66.700](/products/Images/[TKA] 66,700.png)
TKA · Authorized Importer
Knuckleboom
[TKA] 66.700 Standard
Select model
Max Capacity
30,190 kg
Own Weight
6,320 kg
Hydraulic Extensions
3
Manual Extensions
7
Max Vertical
29.2m
Max Horizontal
18.6m
Full Specifications
| Standard● selected | Fly Jib | |
|---|---|---|
| Max Capacity | 30,190 kg | 28,220 kg |
| Own Weight | 6,320 kg | 7,040 kg |
| Hydraulic Extensions | 3 | 7h + 4h (fly jib) |
| Manual Extensions | 7 | 1m (fly jib) |
| Max Vertical | 29.2m | 33.60m |
| Max Horizontal | 18.6m | 30.03m |
All Models

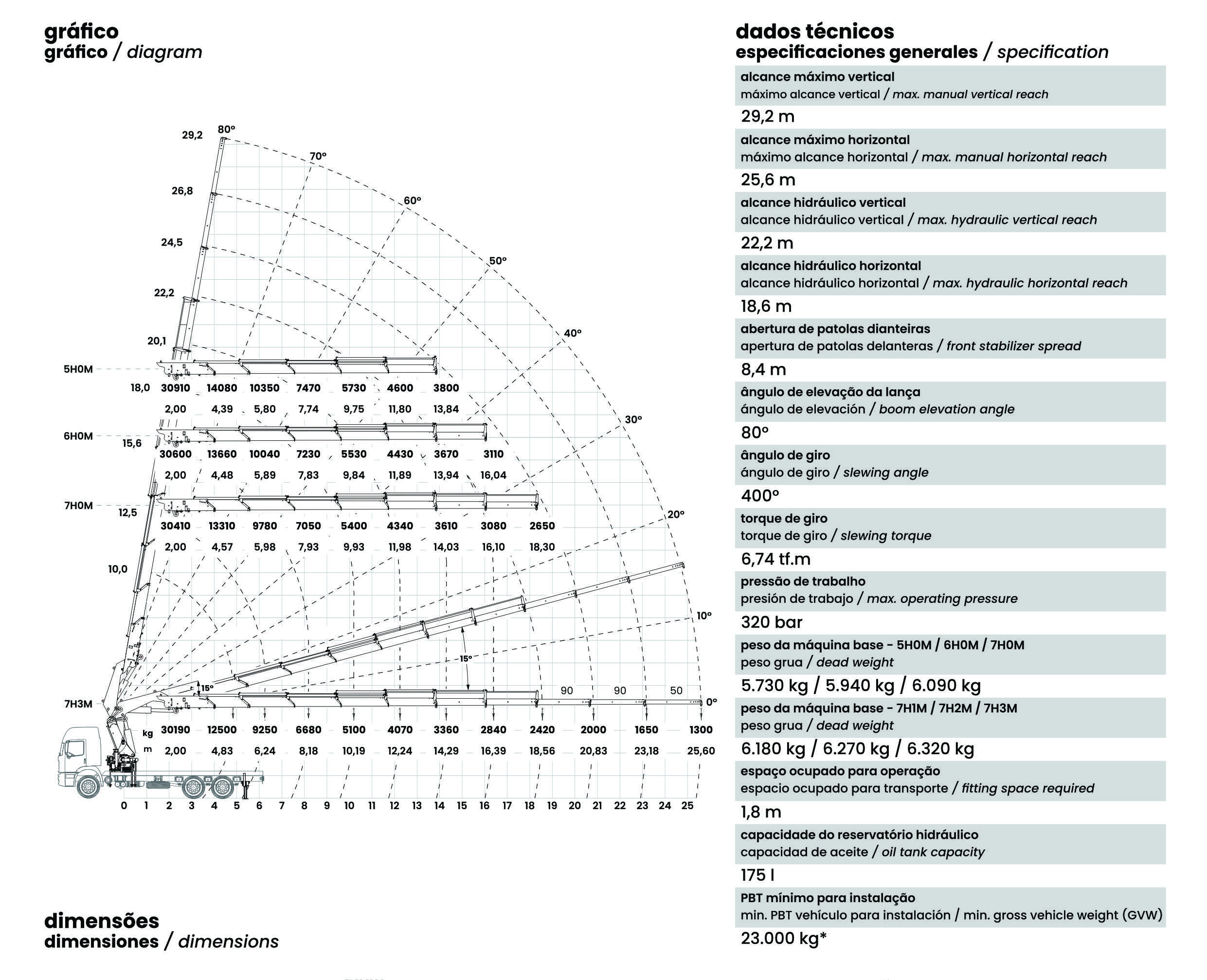

Technical Diagram
![[TKA] 66.700 Standard diagram](/products/diagrams/[TKA] 66,700-diagram.png)
Click to enlarge
Specification Sheet
Download the full technical specification sheet for the [TKA] 66.700 Standard.
