Products→Brazilian Boom→[TKA] 51.900

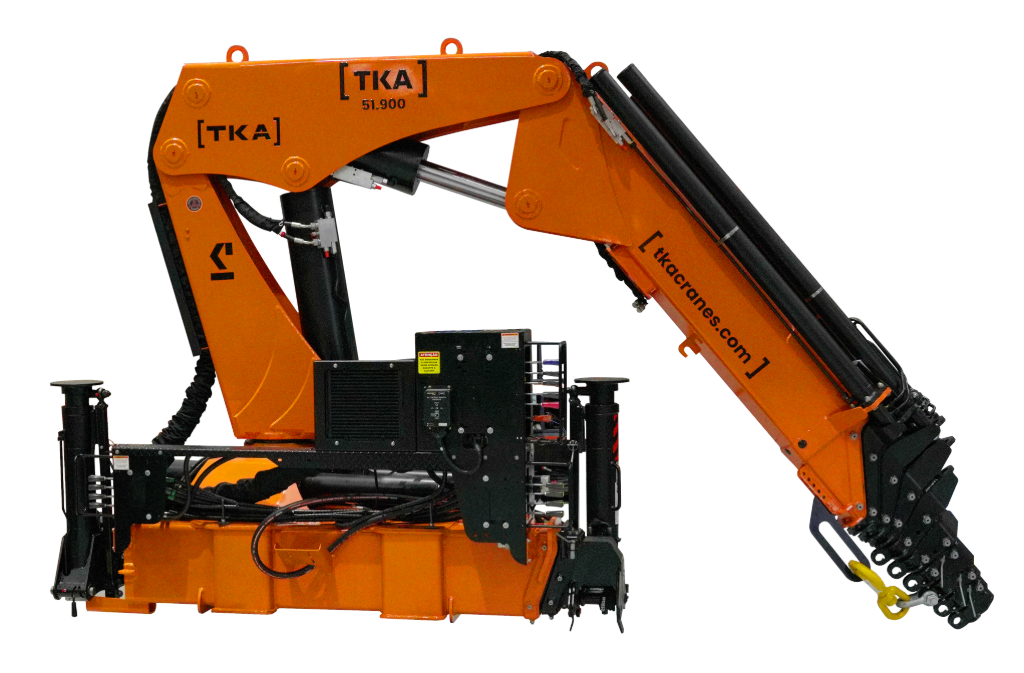

[TKA] 51.900
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 51.900

Max Capacity
11,600 kg
Own Weight
4,830 kg
Hydraulic Extensions
6
Manual Extensions
3
Max Vertical
25.5m
Max Horizontal
22.2m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity11,600 kg
Own Weight4,830 kg
Hydraulic Extensions6
Manual Extensions3
Max Vertical25.5m
Max Horizontal22.2m

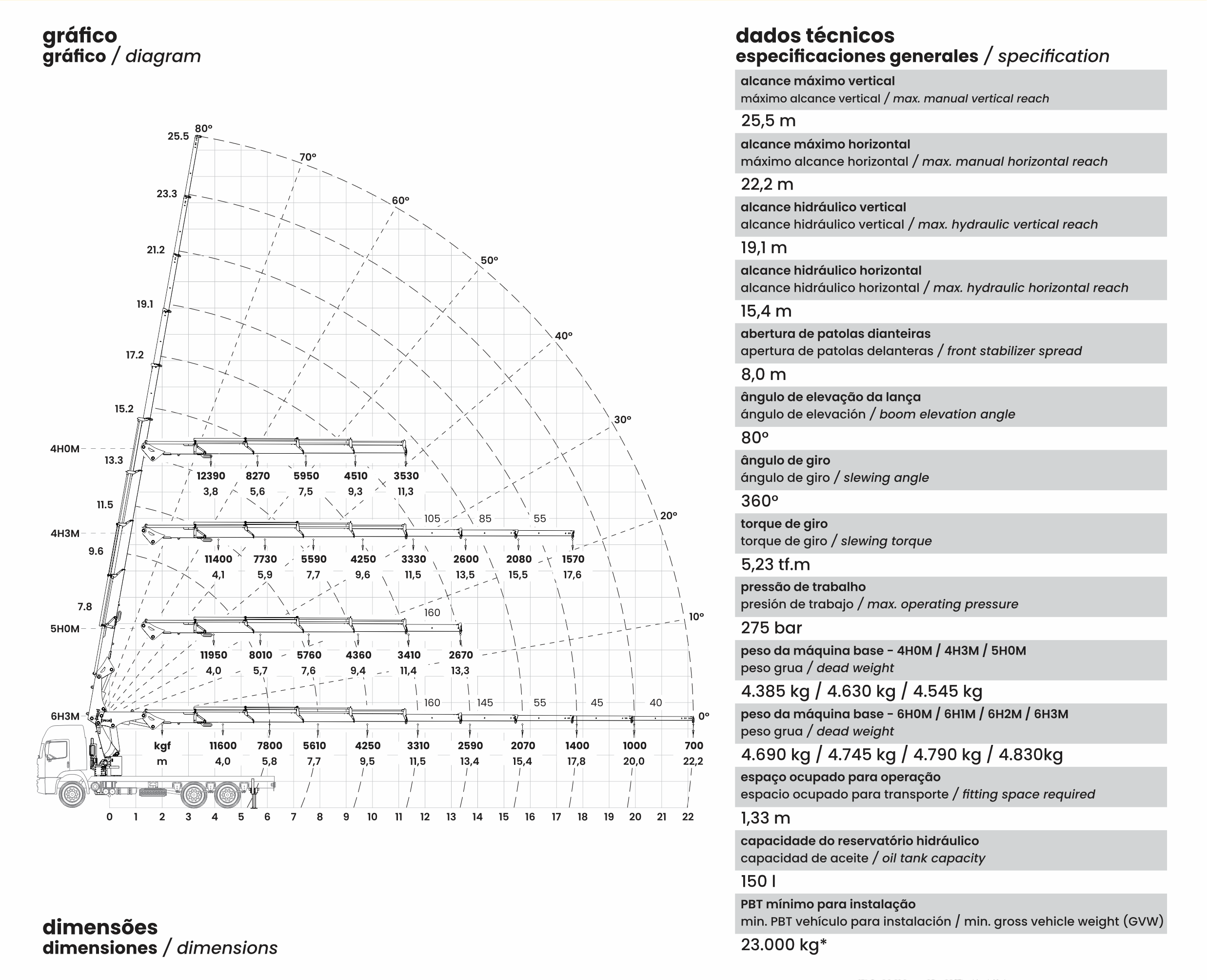

Technical Diagram
[TKA] 51.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 51.900 .

Download PDF →
