Products→Brazilian Boom→[TKA] 48.700

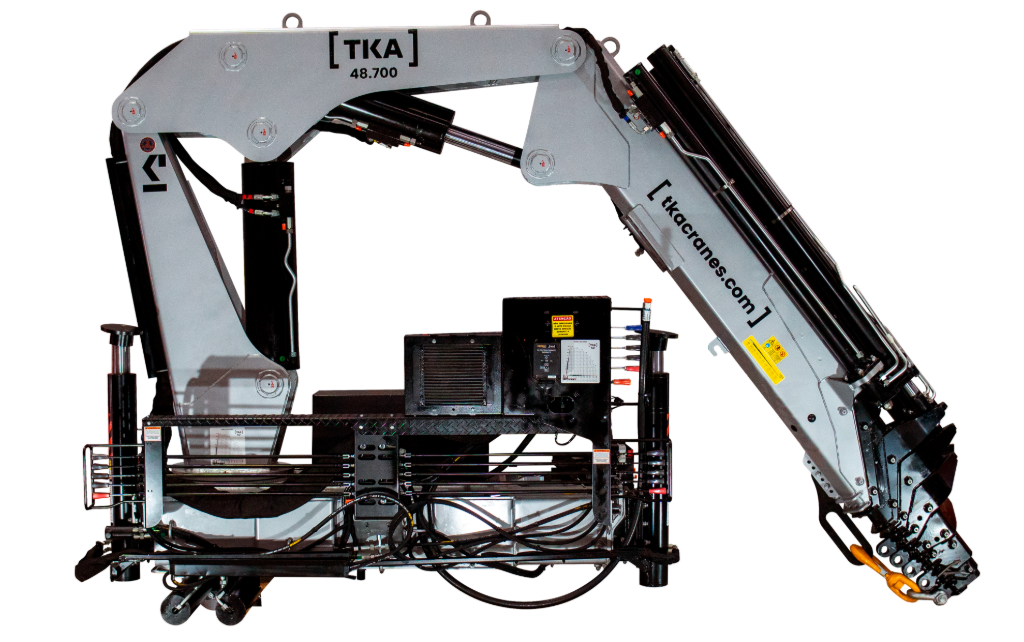

[TKA] 48.700
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 48.700

Max Capacity
10,840 kg
Own Weight
4,835 kg
Hydraulic Extensions
6
Manual Extensions
2
Max Vertical
23.5m
Max Horizontal
19.9m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity10,840 kg
Own Weight4,835 kg
Hydraulic Extensions6
Manual Extensions2
Max Vertical23.5m
Max Horizontal19.9m

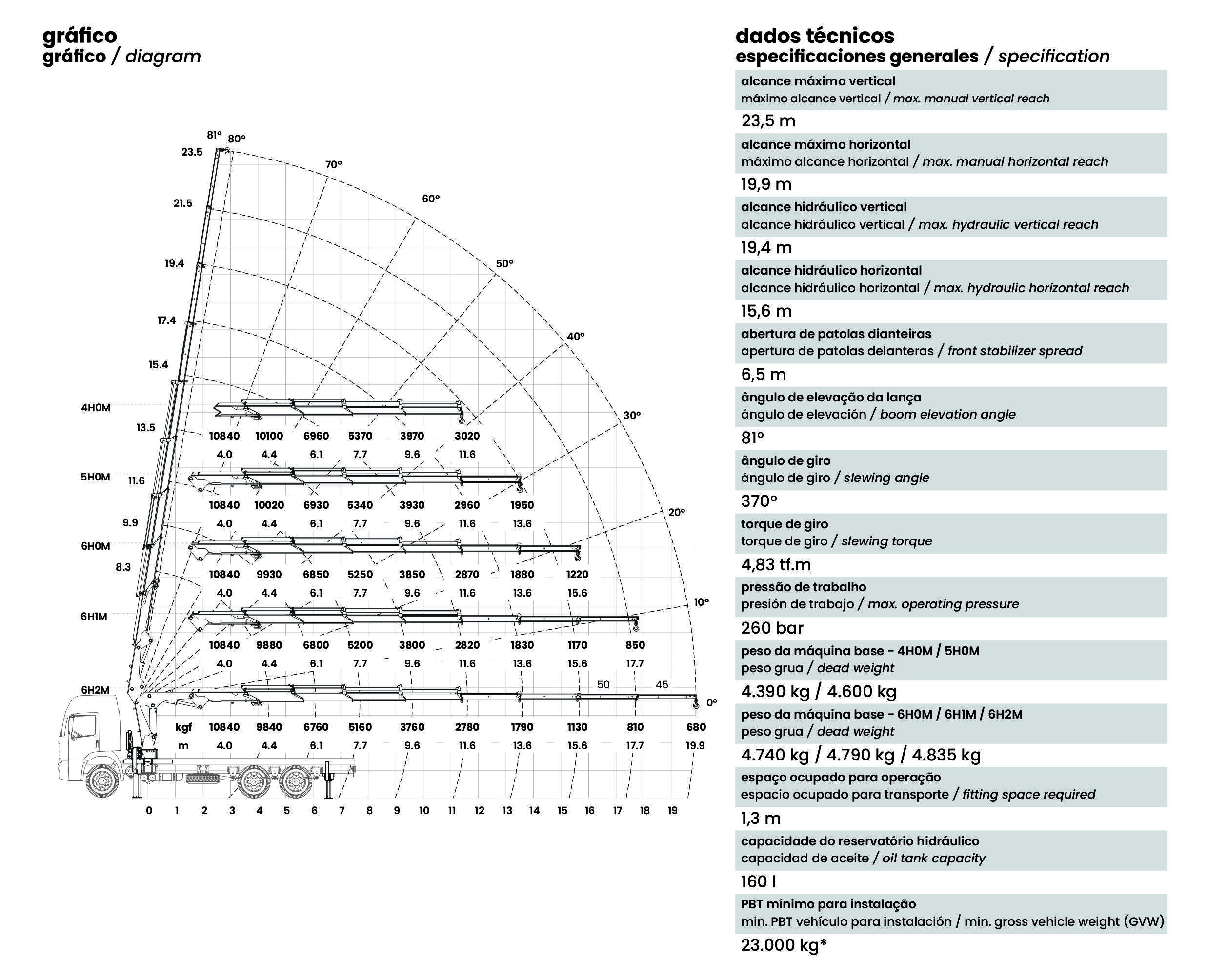

Technical Diagram
[TKA] 48.700 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 48.700 .

Download PDF →
