Products→Brazilian Boom→[TKA] 41.900
[TKA] 41.900
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 41.900

Max Capacity
9,500 kg
Own Weight
3,680 kg
Hydraulic Extensions
5
Manual Extensions
3
Max Vertical
23.8m
Max Horizontal
20.6m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity9,500 kg
Own Weight3,680 kg
Hydraulic Extensions5
Manual Extensions3
Max Vertical23.8m
Max Horizontal20.6m

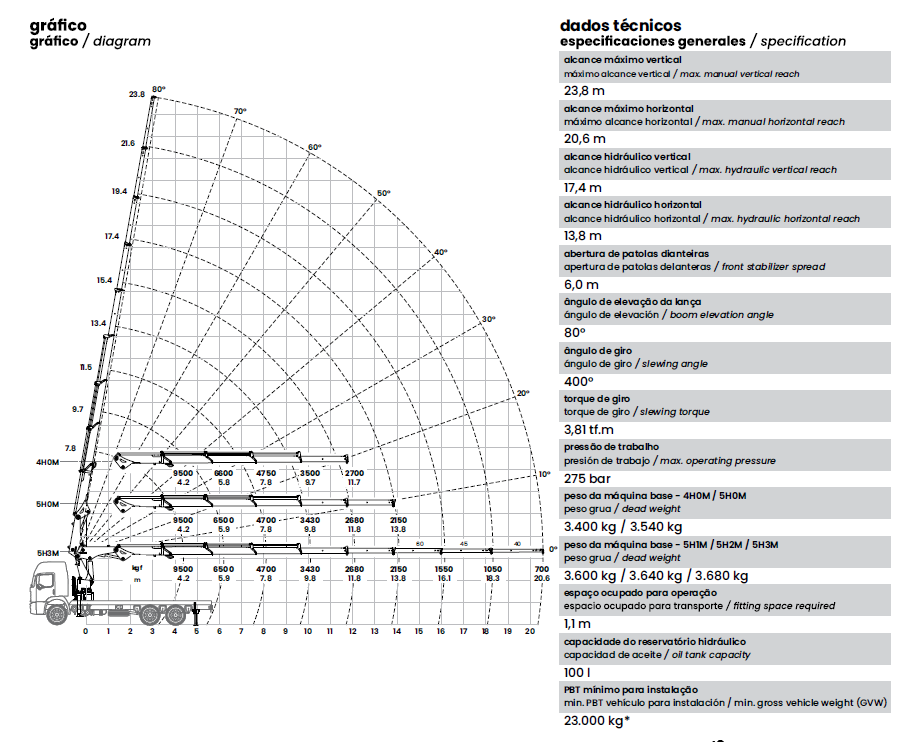

Technical Diagram
[TKA] 41.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 41.900 .

Download PDF →
