Products→Knuckleboom→[TKA] 30.900

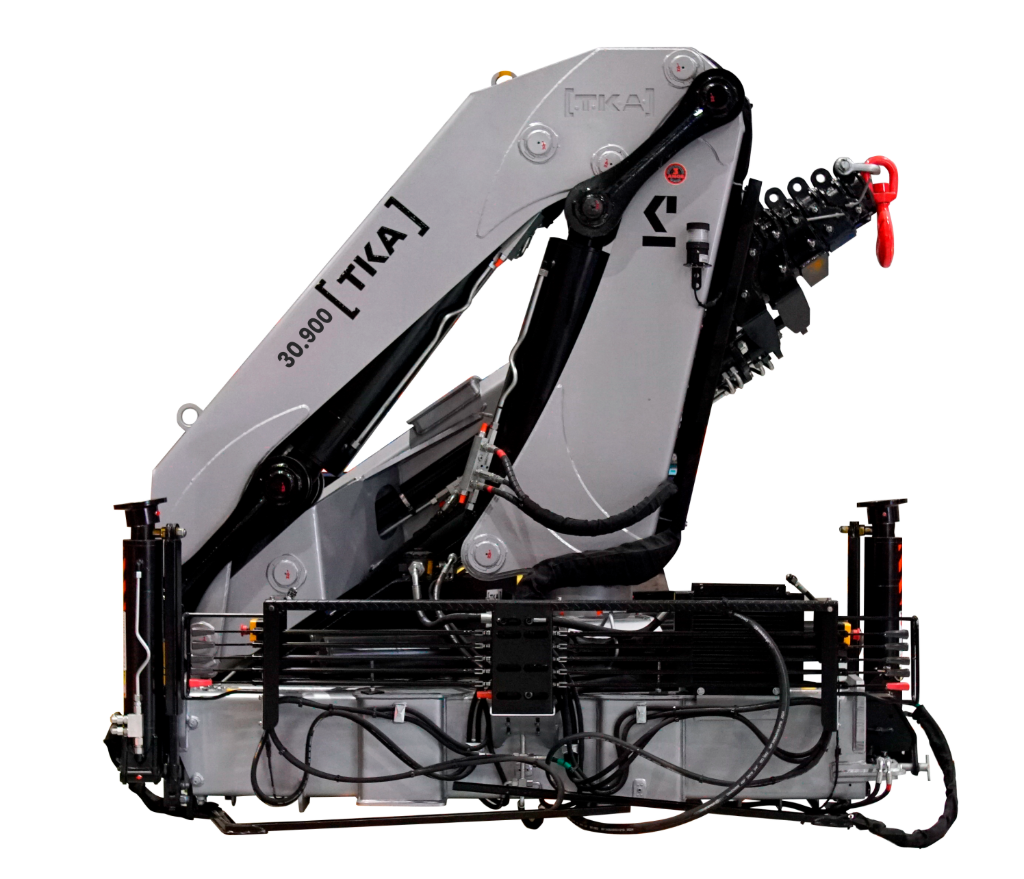

[TKA] 30.900
Knuckleboom
Click to enlarge
TKA · Authorized Importer
Knuckleboom

[TKA] 30.900

Max Capacity
10,250 kg
Own Weight
3,740 kg
Hydraulic Extensions
5
Manual Extensions
3
Max Vertical
23.8m
Max Horizontal
20.7m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity10,250 kg
Own Weight3,740 kg
Hydraulic Extensions5
Manual Extensions3
Max Vertical23.8m
Max Horizontal20.7m

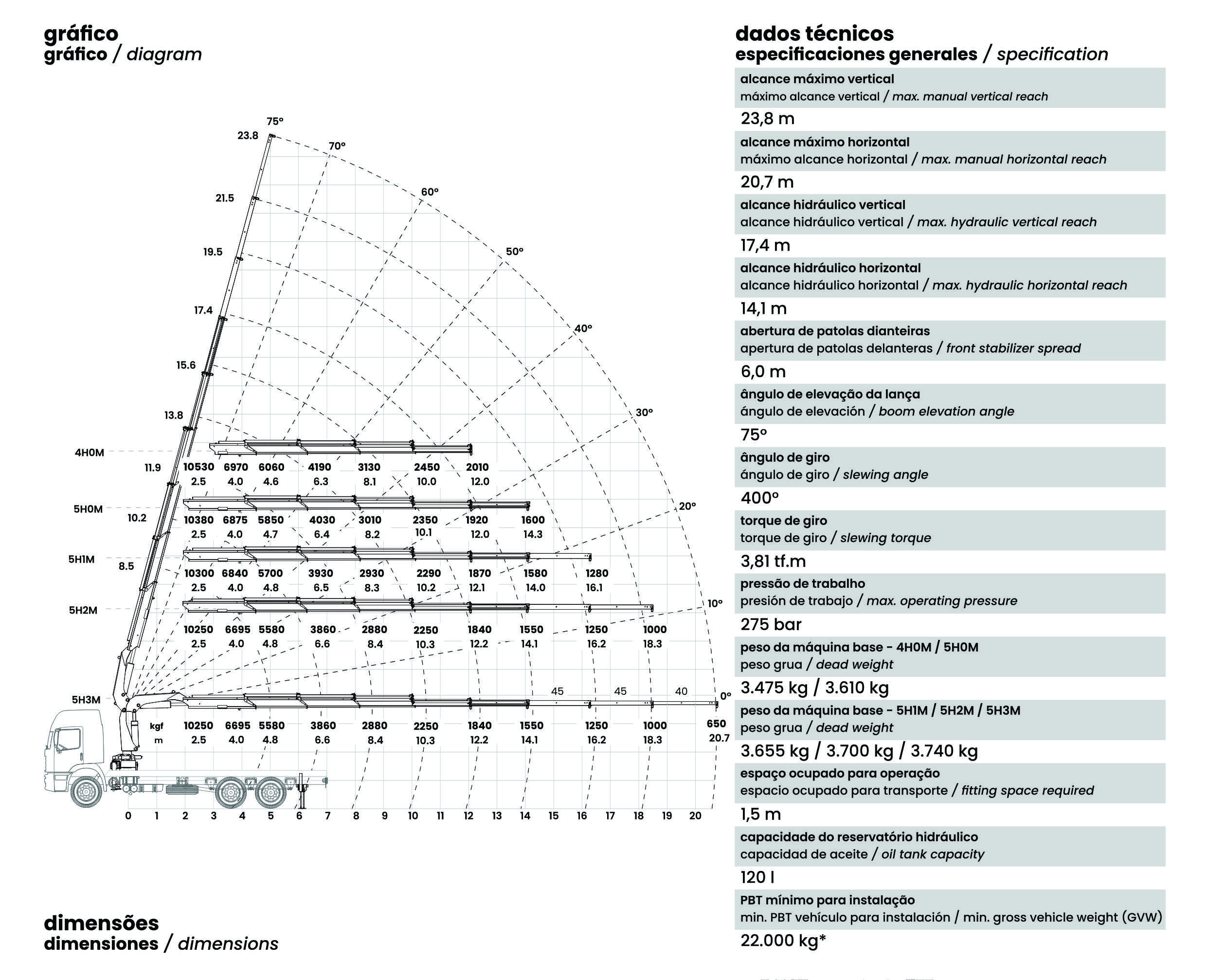

Technical Diagram
[TKA] 30.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 30.900 .

Download PDF →
Interested in this product?

Request a quote and our team will get back to you within one business day.

Request Quote →
Related Products
[TKA] 6.700
2,670 kg · TKA
[TKA] 10.900
4,000 kg · TKA
[TKA] 12.900
5,950 kg · TKA
[TKA] 15.900
5,700 kg · TKA
