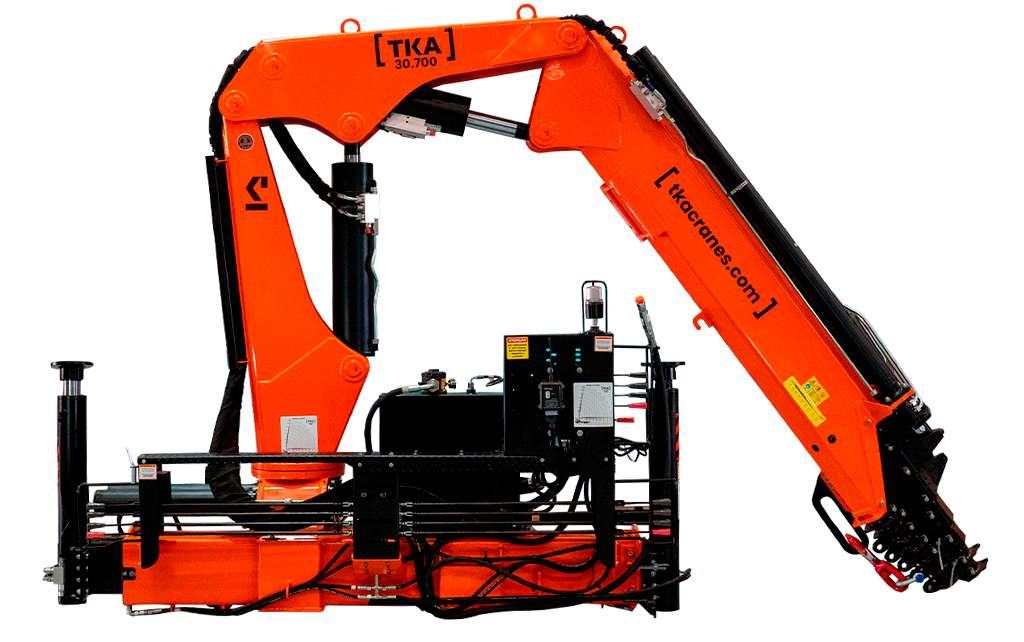

[TKA] 30.700
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 30.700

Max Capacity
5,800 kg
Own Weight
3,495 kg
Hydraulic Extensions
5
Manual Extensions
2
Max Vertical
21.8m
Max Horizontal
18.3m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity5,800 kg
Own Weight3,495 kg
Hydraulic Extensions5
Manual Extensions2
Max Vertical21.8m
Max Horizontal18.3m

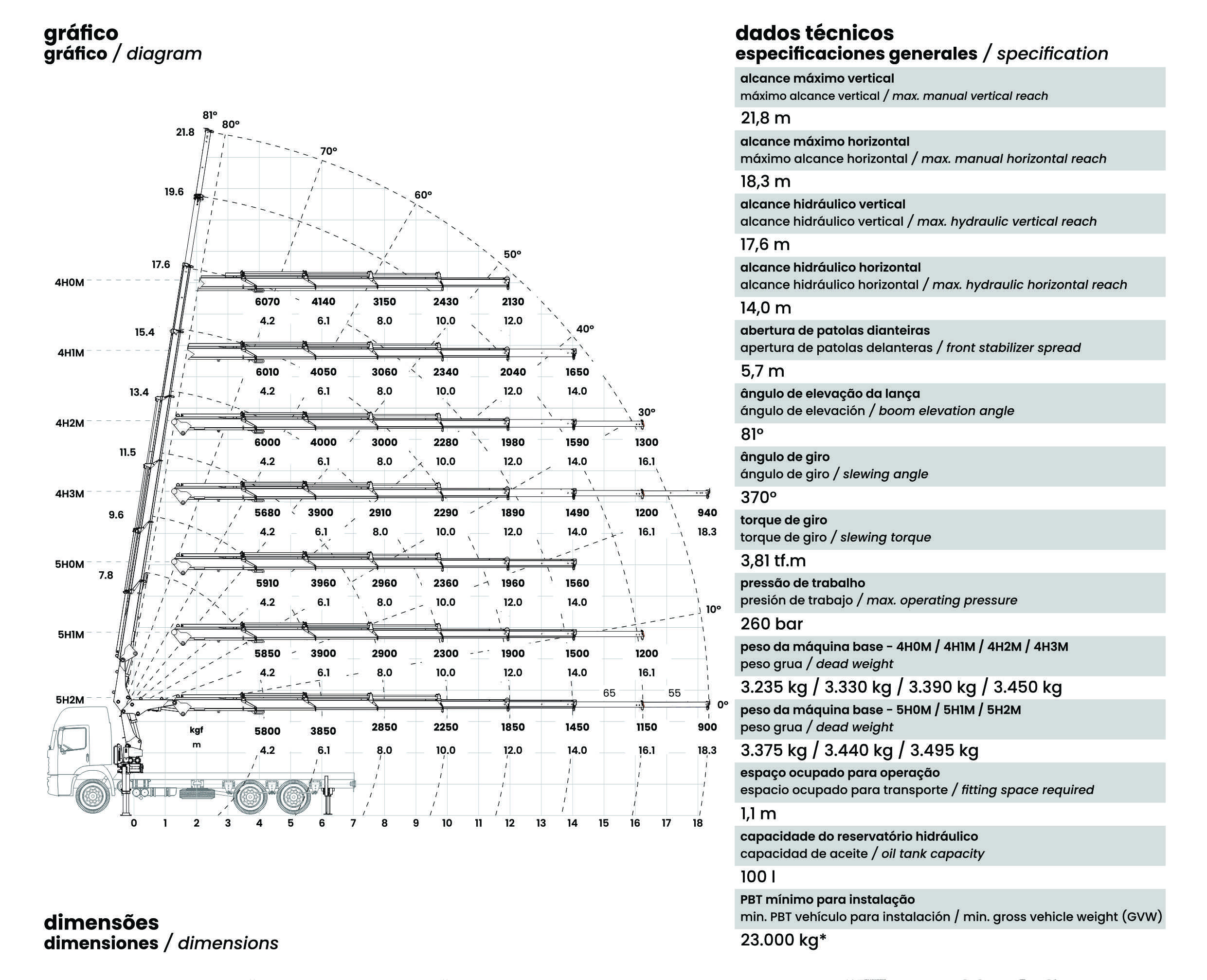

Technical Diagram
[TKA] 30.700 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 30.700 .

Download PDF →
