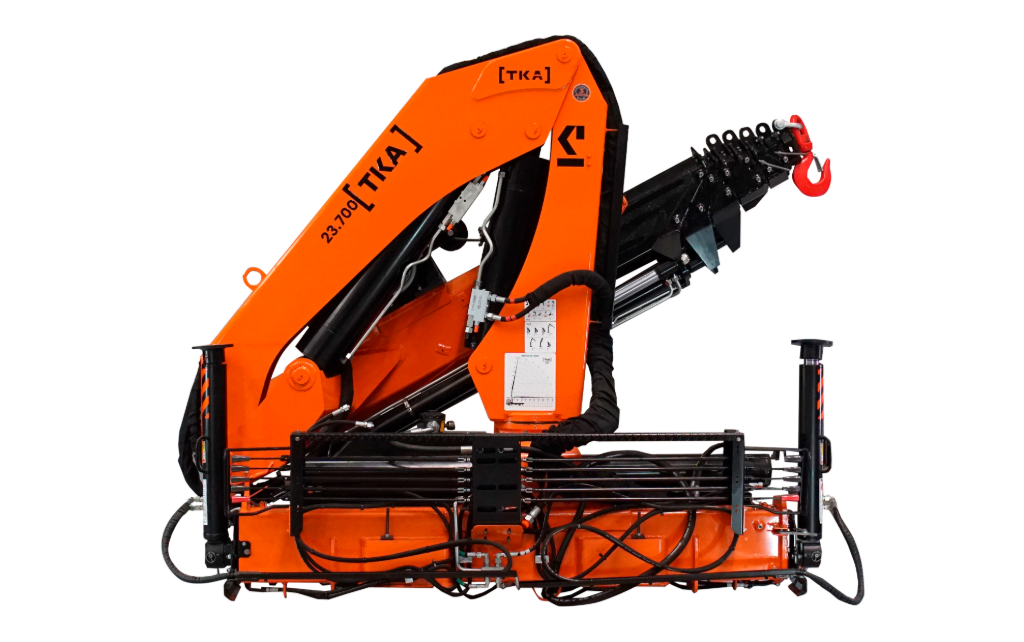

[TKA] 23.700
Knuckleboom
Click to enlarge
TKA · Authorized Importer
Knuckleboom

[TKA] 23.700

Max Capacity
9,335 kg
Own Weight
3,010 kg
Hydraulic Extensions
5
Manual Extensions
2
Max Vertical
21.5m
Max Horizontal
18.2m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity9,335 kg
Own Weight3,010 kg
Hydraulic Extensions5
Manual Extensions2
Max Vertical21.5m
Max Horizontal18.2m

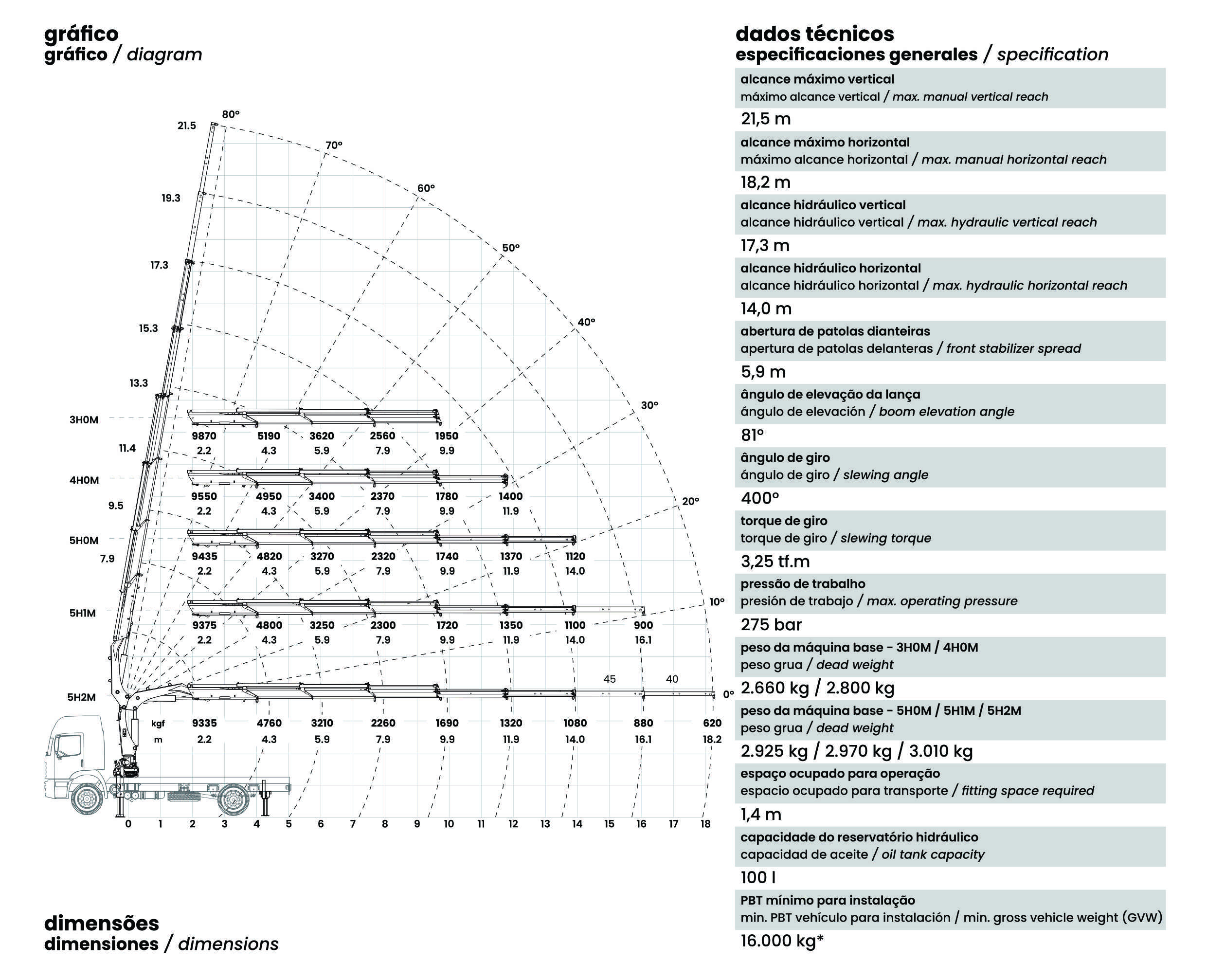

Technical Diagram
[TKA] 23.700 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 23.700 .

Download PDF →
