Tractor Loader

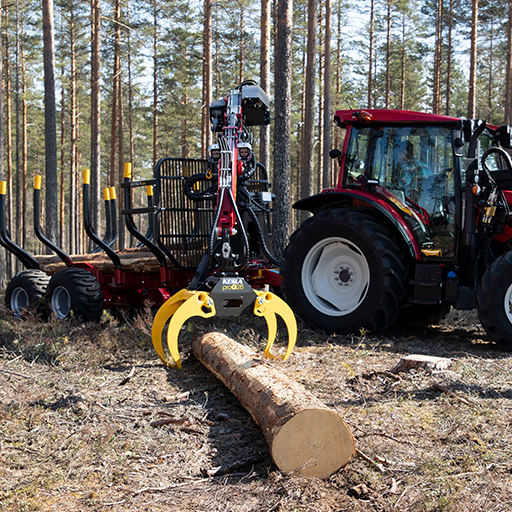

Kesla 314 314
Select model
Outreach
7.1 m
Boom Extension
1.8 m
Lifting Torque (net, 4m)
46 kNm
Lifting Torque (brutto, 4m)
59 kNm
Lifting Capacity at 3m
1,565 kg
Lifting Capacity at 4m
1,165 kg
Lifting Capacity at Max Outreach
590 kg
Slewing Angle
380°
Slewing Torque
13.5 kNm
Working Pressure
190 bar
Weight
980 kg
Full Specifications
| 314● selected | 314T | |
|---|---|---|
| Outreach | 7.1 m | 8.7 m |
| Boom Extension | 1.8 m | 2 x 1.7 m |
| Lifting Torque (net, 4m) | 46 kNm | 42 kNm |
| Lifting Torque (brutto, 4m) | 59 kNm | 59 kNm |
| Lifting Capacity at 3m | 1,565 kg | 1,360 kg |
| Lifting Capacity at 4m | 1,165 kg | 1,065 kg |
| Lifting Capacity at Max Outreach | 590 kg | 440 kg |
| Slewing Angle | 380° | 380° |
| Slewing Torque | 13.5 kNm | 13.5 kNm |
| Working Pressure | 190 bar | 190 bar |
| Weight | 980 kg | 950 kg |
All Models
Technical Diagram
Click to enlarge
